2020 Chevrolet 5500XD LCF Diesel

18' Landscape bed 14' flat deck 4' dove WB176"

$47,494

Price Drop Notifications Text Us Send To A Friend Make Offer Check Availability Financing Print
Share to Social Media
CARFAX Snapshot

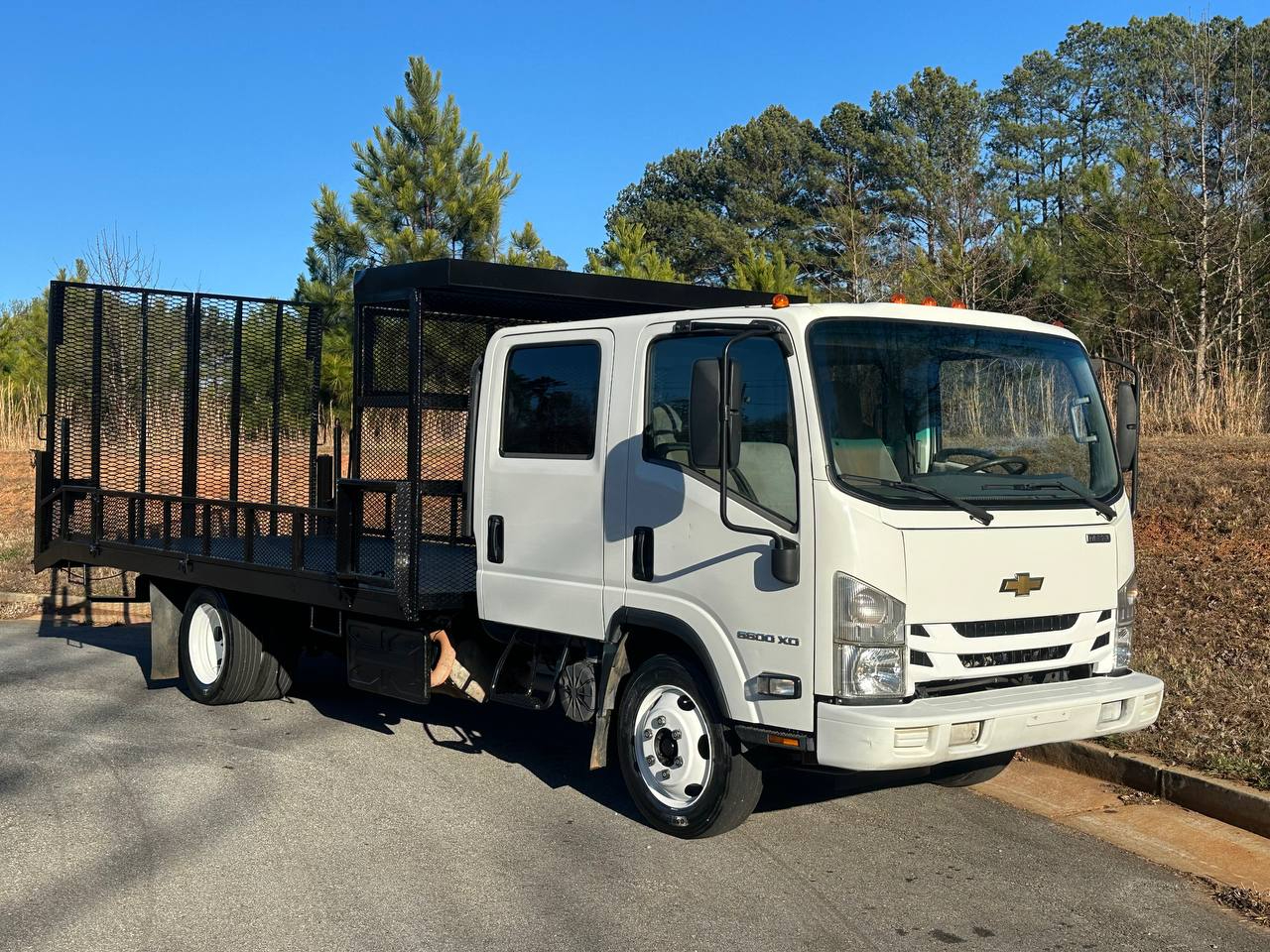

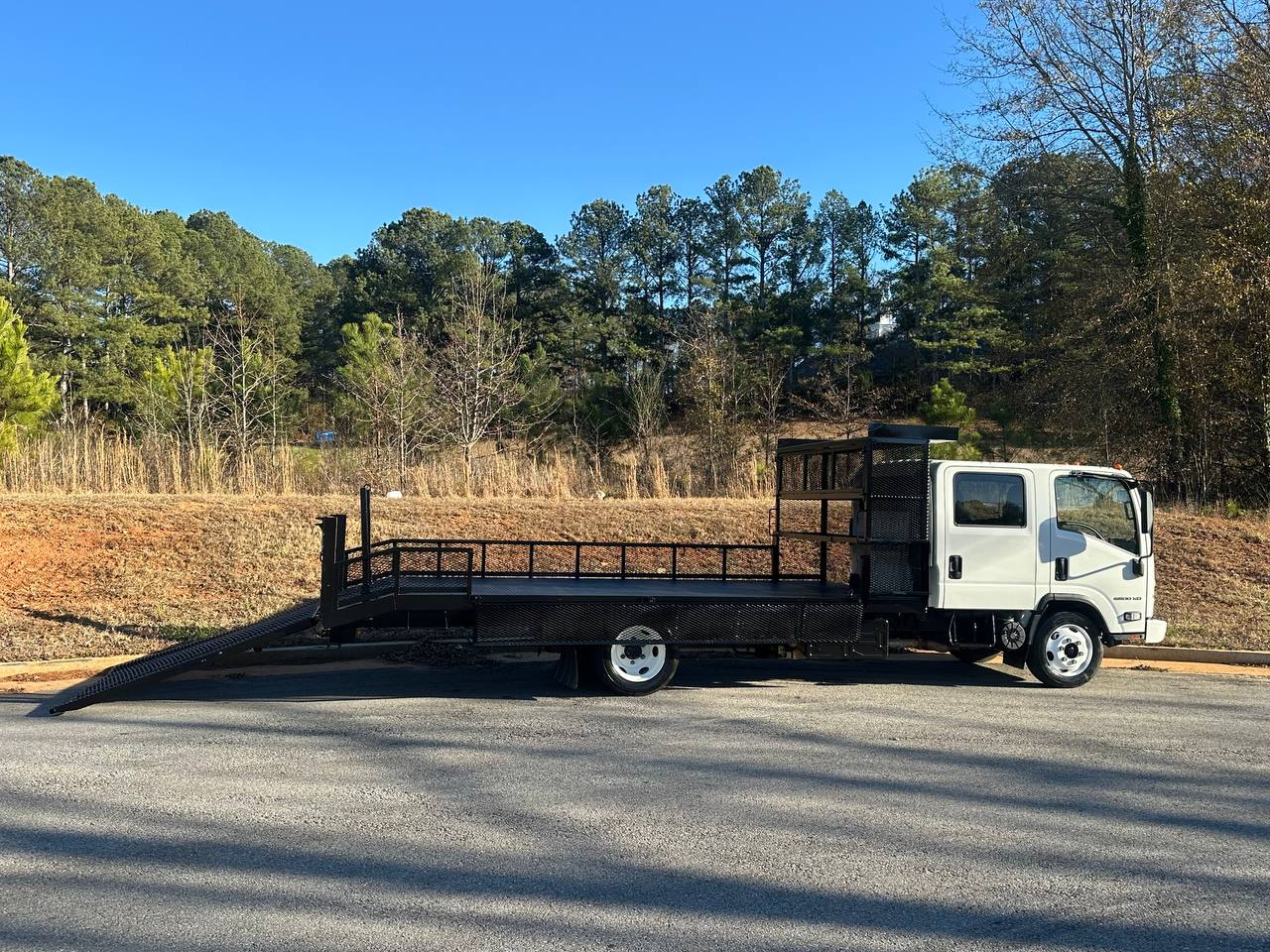

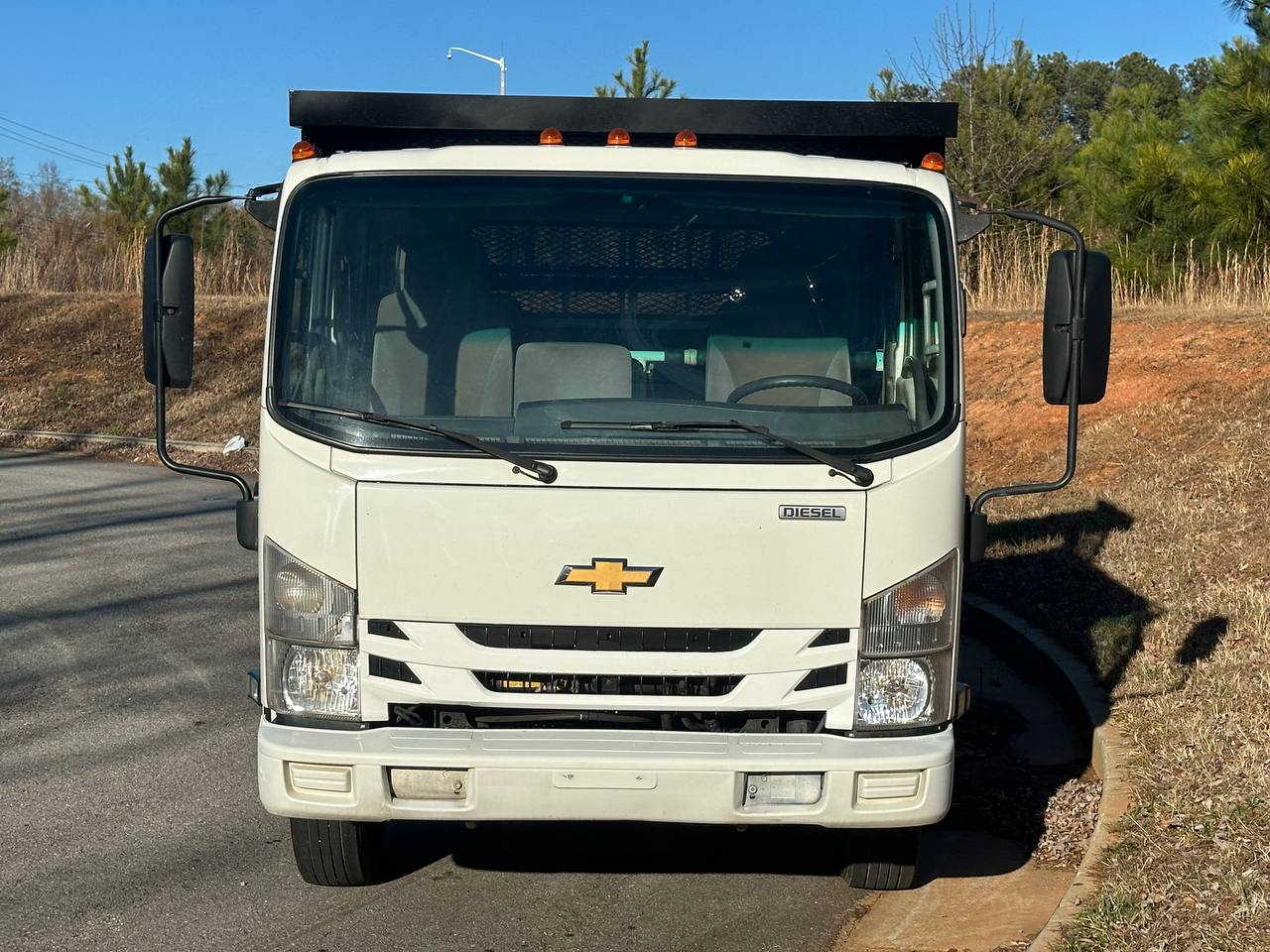

2020 Chevrolet 5500XD LCF Diesel – 18' Landscape Bed | 14' Flat Deck + 4' Dove | 176\" WB

Put this 2020 Chevrolet 5500XD LCF to work for your crew. This is a heavy-duty cab-over landscape truck built for serious lawn care, tree service, and ground maintenance operations. With only 88,052 miles and a diesel engine, it’s got plenty of life left and is ready to work from day one.

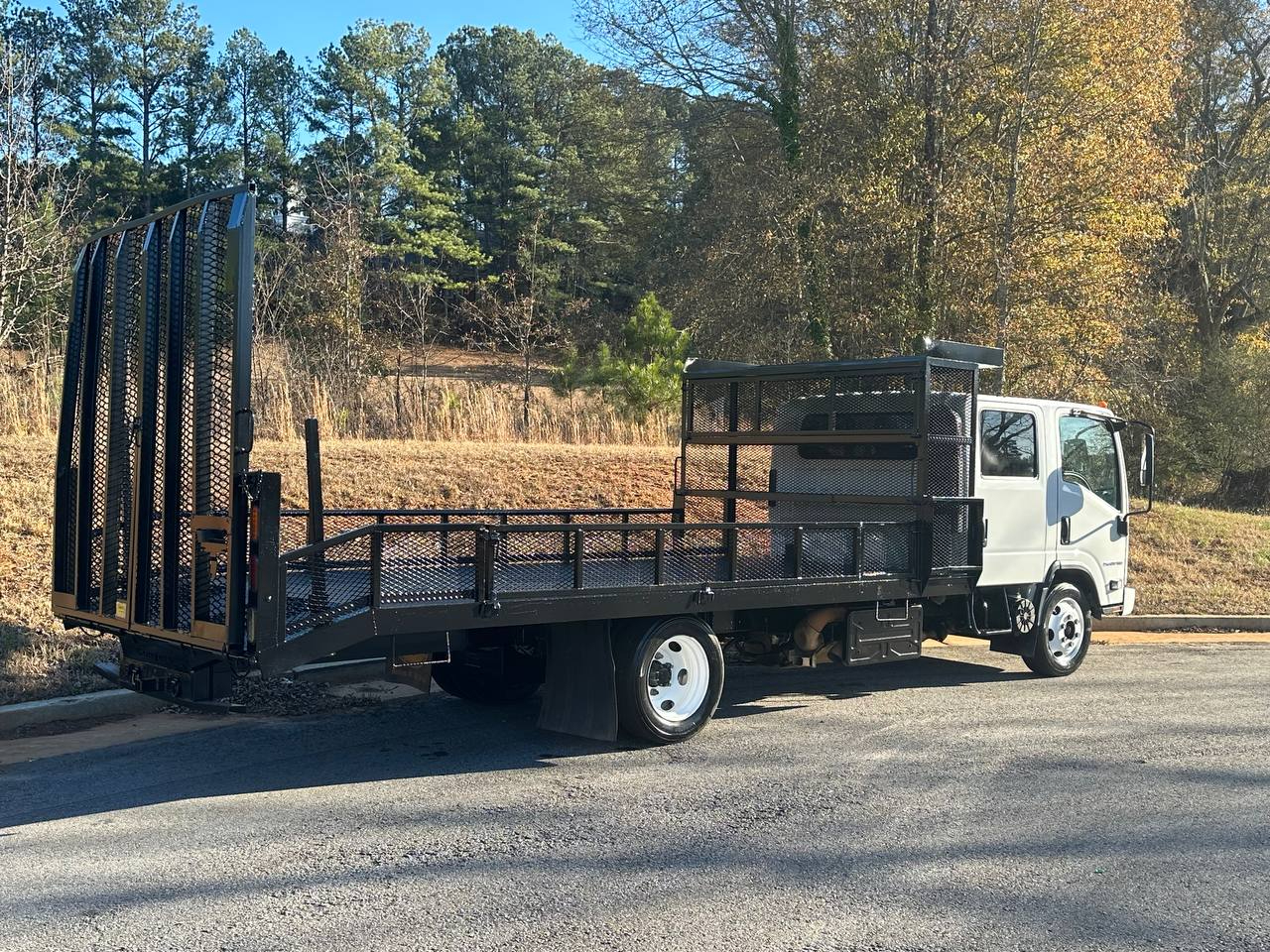

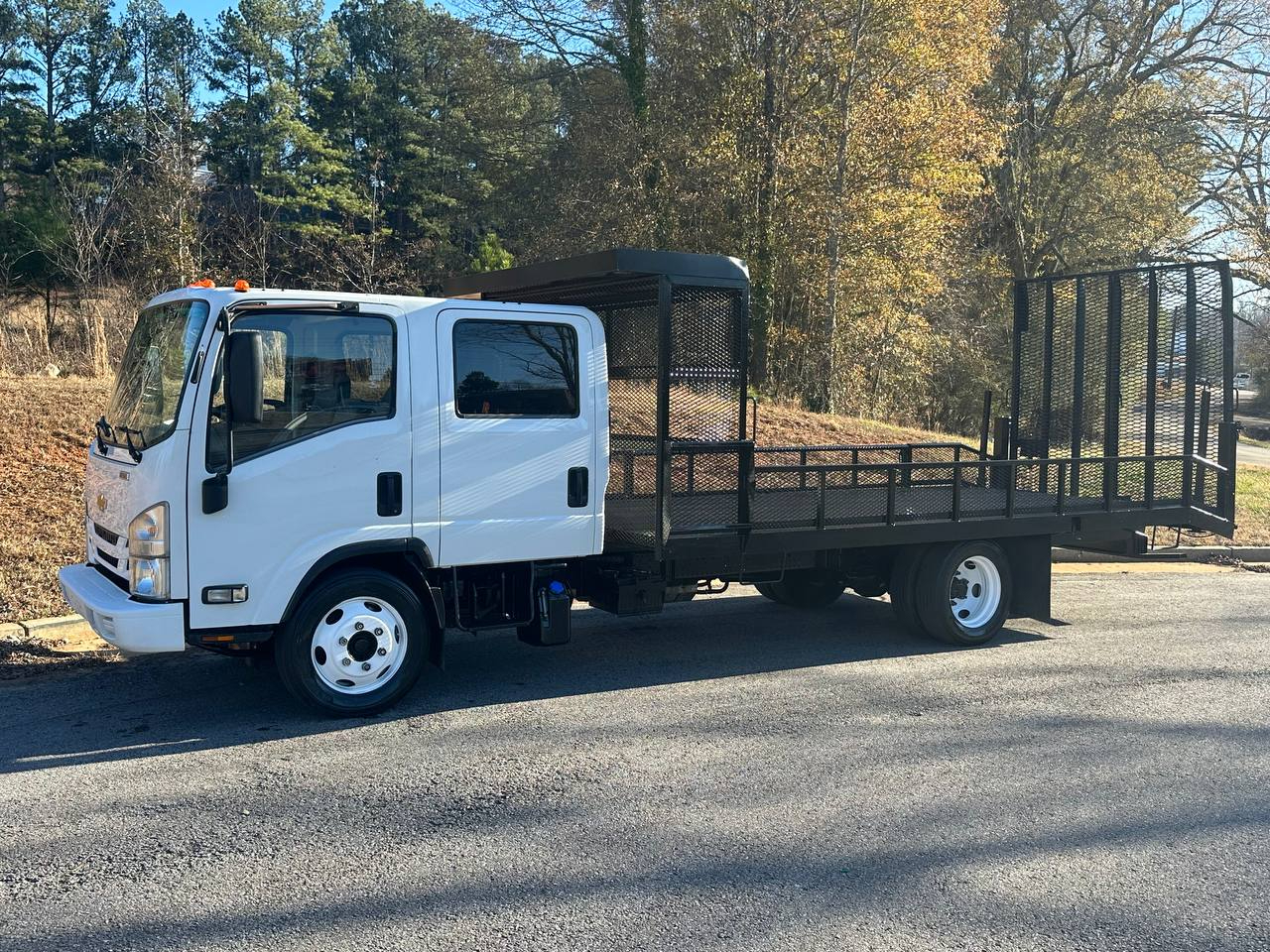

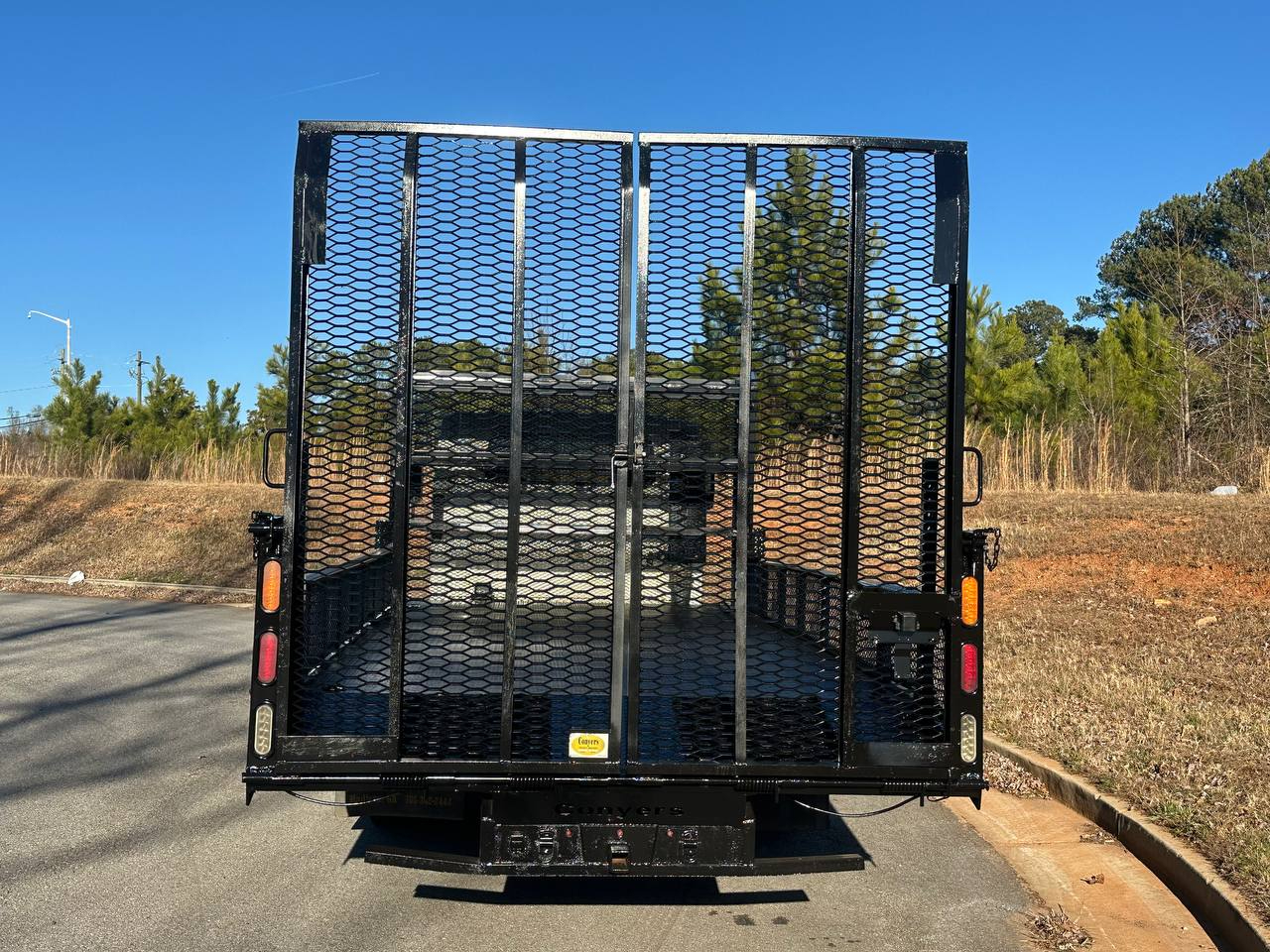

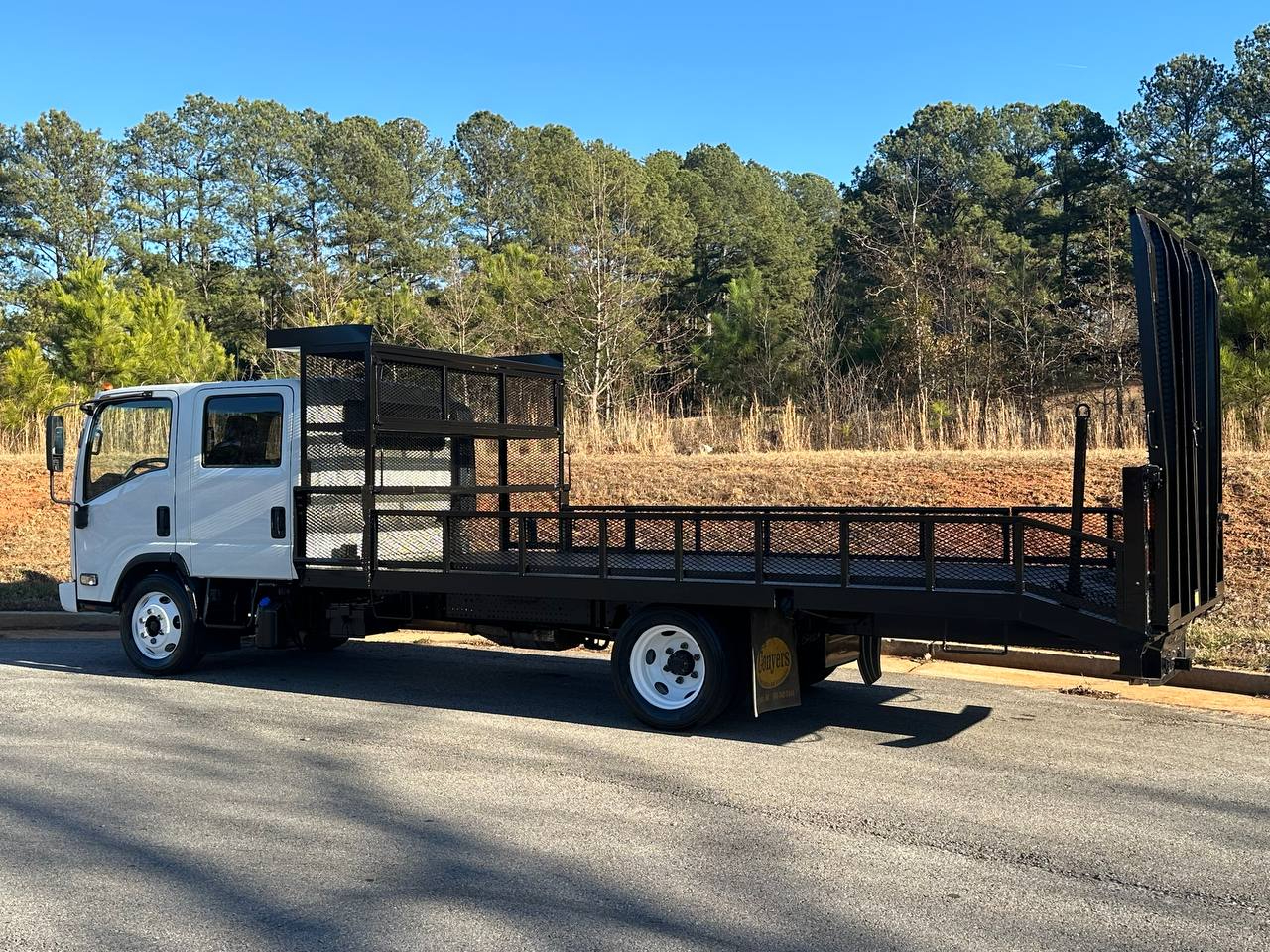

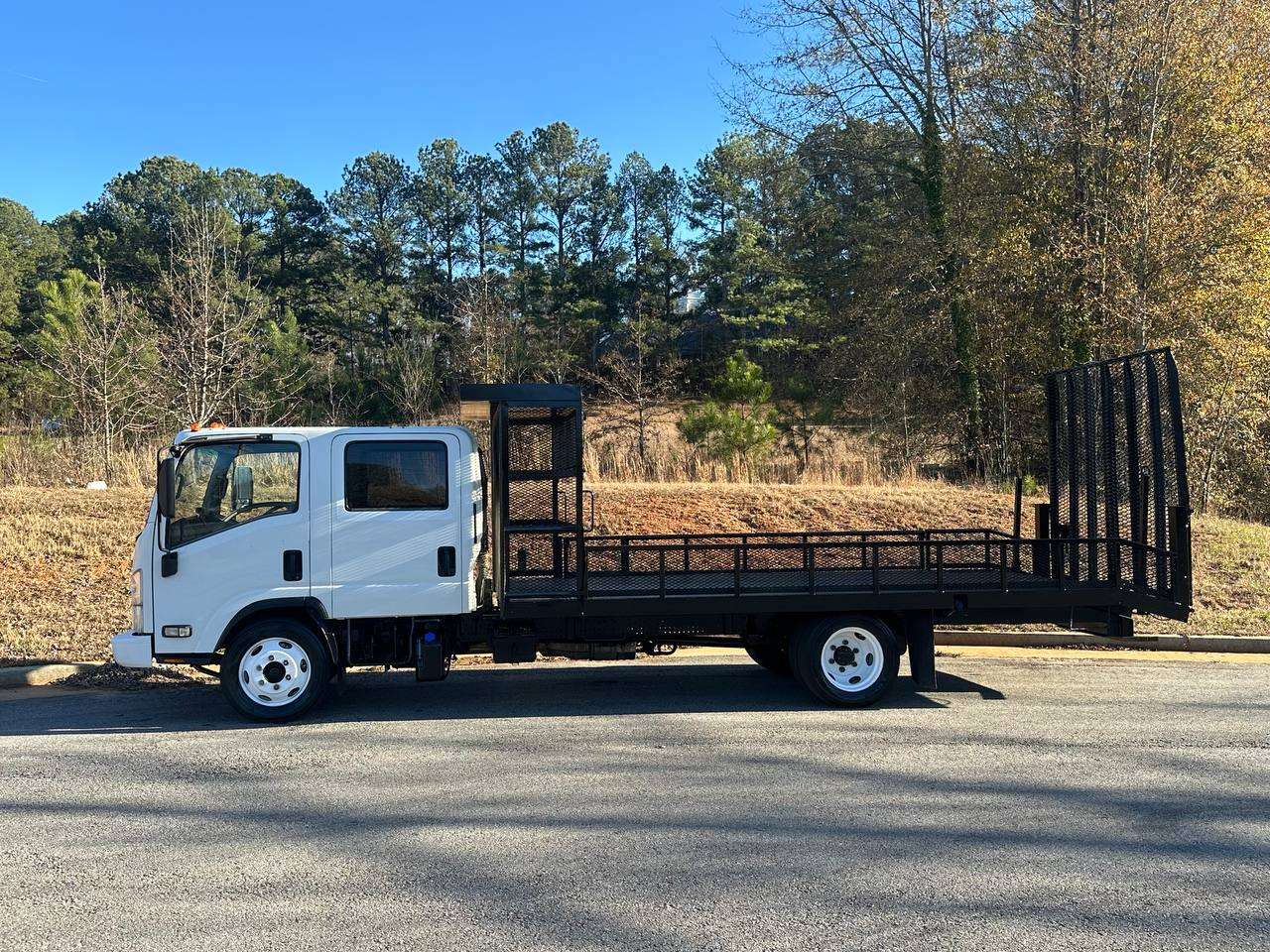

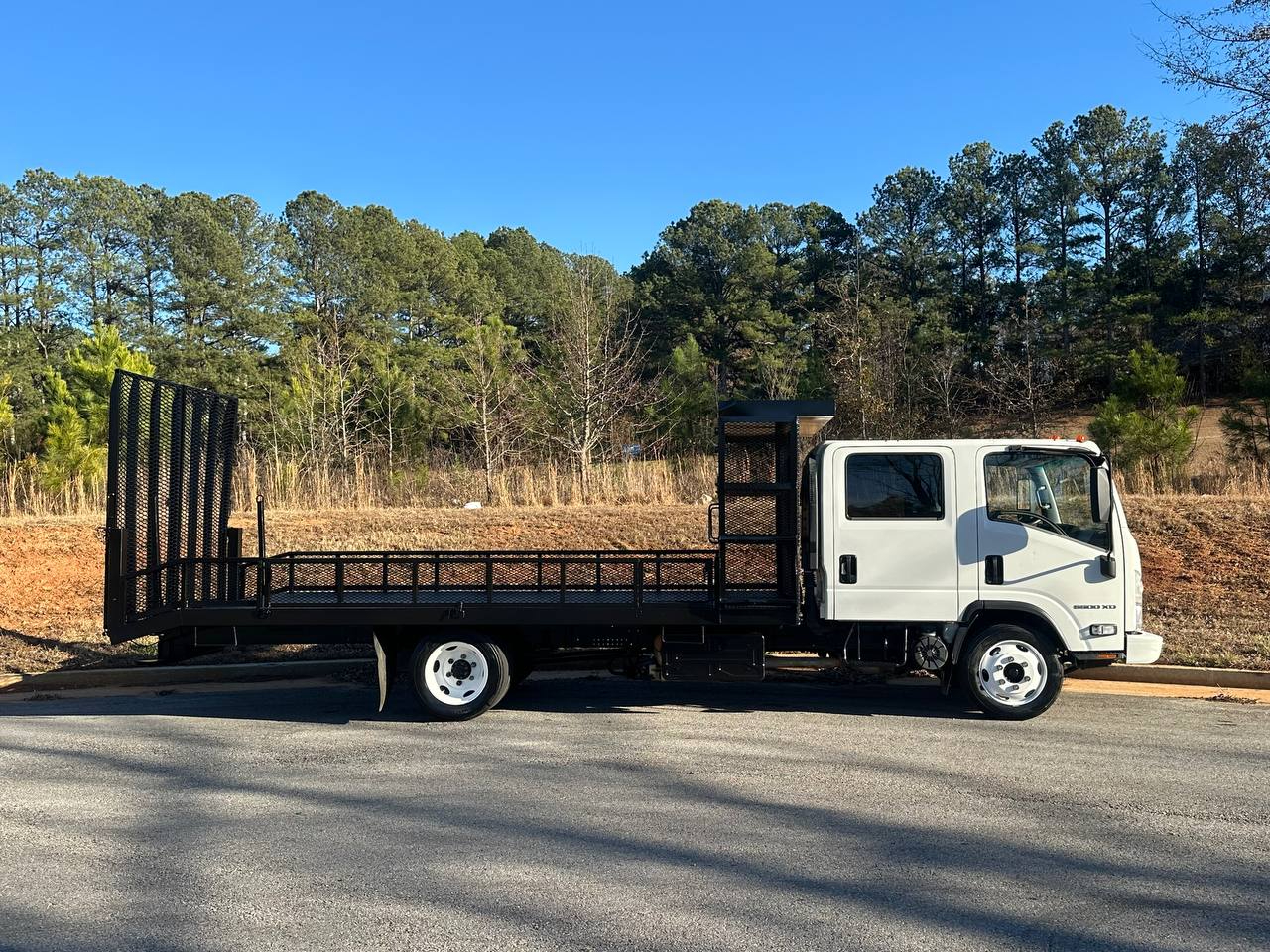

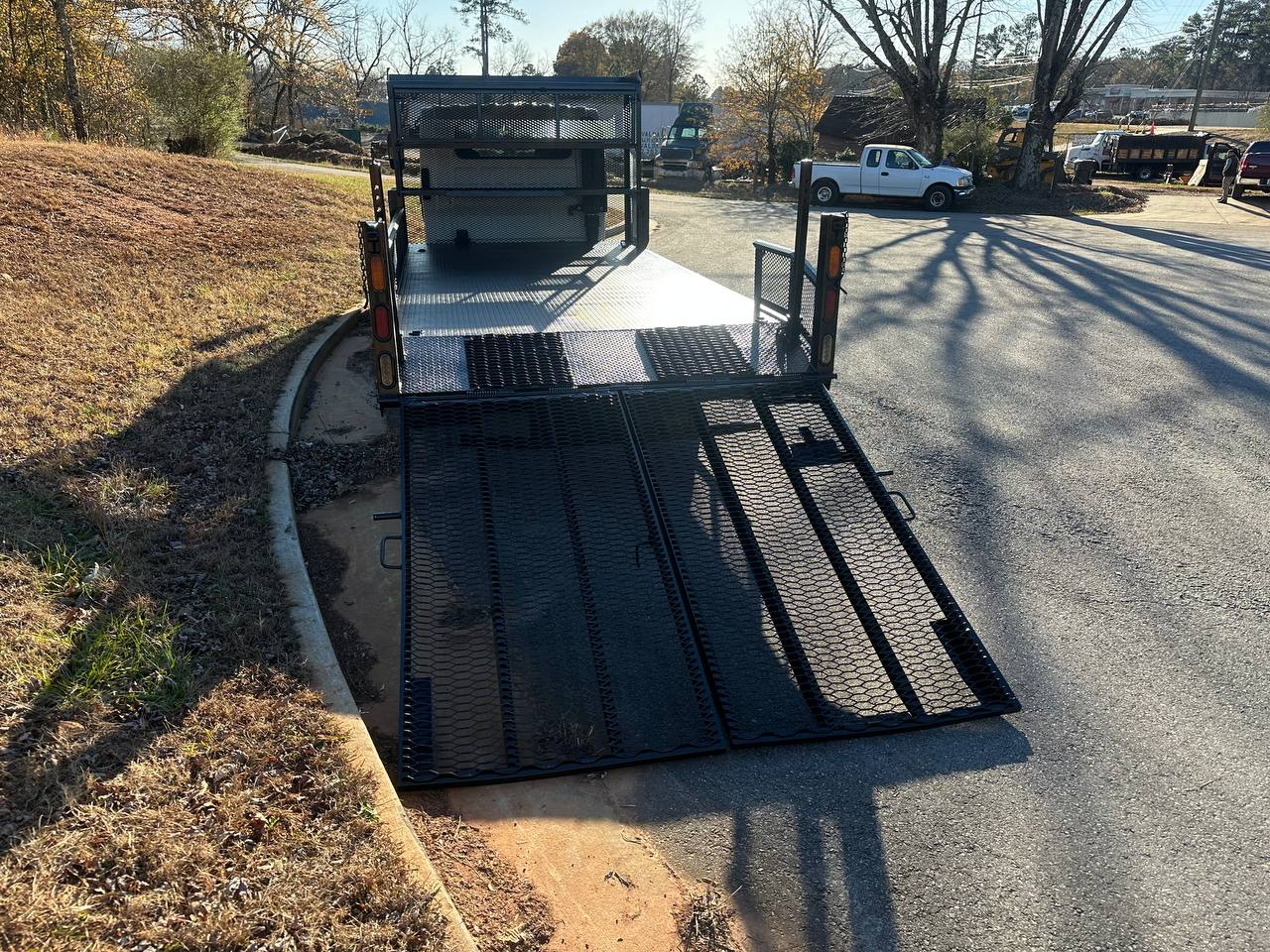

The 18-foot landscape body features a 14-foot flat deck with a 4-foot dovetail, making equipment loading fast and safe. The extra-long 176-inch wheelbase gives you a stable, balanced platform even under full load. Powered by a 5.2L 4-cylinder Diesel engine producing 215 horsepower, paired with an automatic transmission for easy fleet driving.

Cab-over design means excellent visibility and a tight turning radius – perfect for navigating residential neighborhoods and commercial properties.



Visit Iconic Auto Group online at www.iconicautogroup.com to see more pictures of this vehicle or text us at 855-798-6779 today to schedule your test drive.

***Listed price does not include tax, tag, title fees, and dealer doc fee!***

MECHANICAL

  • Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected
  • Rear axle, 5.57 ratio (Standard on 5500XD only.)
  • Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
  • Drivetrain, rear-wheel drive
  • Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
  • Alternator, 140 amps
  • Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 11.89 cu.in. and RBM 523,160 lb-ft/in per rail.
  • Incomplete vehicle certification
  • Wheelbase, 176" (447.0 cm)
  • GVWR, 19,500 lbs. (8845 kg) (Standard on 5500XD only.)
  • Front suspension, 8,440 lbs. (3828 kg) tapered leaf (Standard on 4500XD, 5500HD and 5500XD only.)
  • Rear Suspension, 14,550 lbs. (6599 kg) (Standard on 5500HD and 5500XD only.)
  • Front axle, 7275 lbs. (3300 kg), reverse Elliot "I"-beam (Standard on 5500XD only.)
  • Rear axle, 14,550 lbs. (6600 kg) (Standard on 5500HD and 5500XD only.)
  • Vehicle Application Truck
  • Brakes, 4-wheel antilock, front disc, rear drum, dual circuit, vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission-mounted parking brake. Non-asbestos semi-metallic linings are standard. 4 channel anti-lock brake system.
  • Exhaust brake
  • Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
  • Exhaust, single horizontal outlet

EXTERIOR

  • Wheels, 19.5" x 6", K steel (Standard on 4500XD, 5500HD and 5500XD only.)
  • Tires, front, 225/70R19.5 F 125/123 L BW HWY VAR1 (Standard on 4500XD, 5500HD and 5500XD only.)
  • Tires, rear, 225/70R19.5 F 125/123 L BW HWY VAR1 (Standard on 4500XD, 5500HD and 5500XD only.)
  • Assist steps
  • Glass, tinted
  • Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
  • Windshield wiper, pulse, wet arm

ENTERTAINMENT

  • Audio system feature, 2 speakers

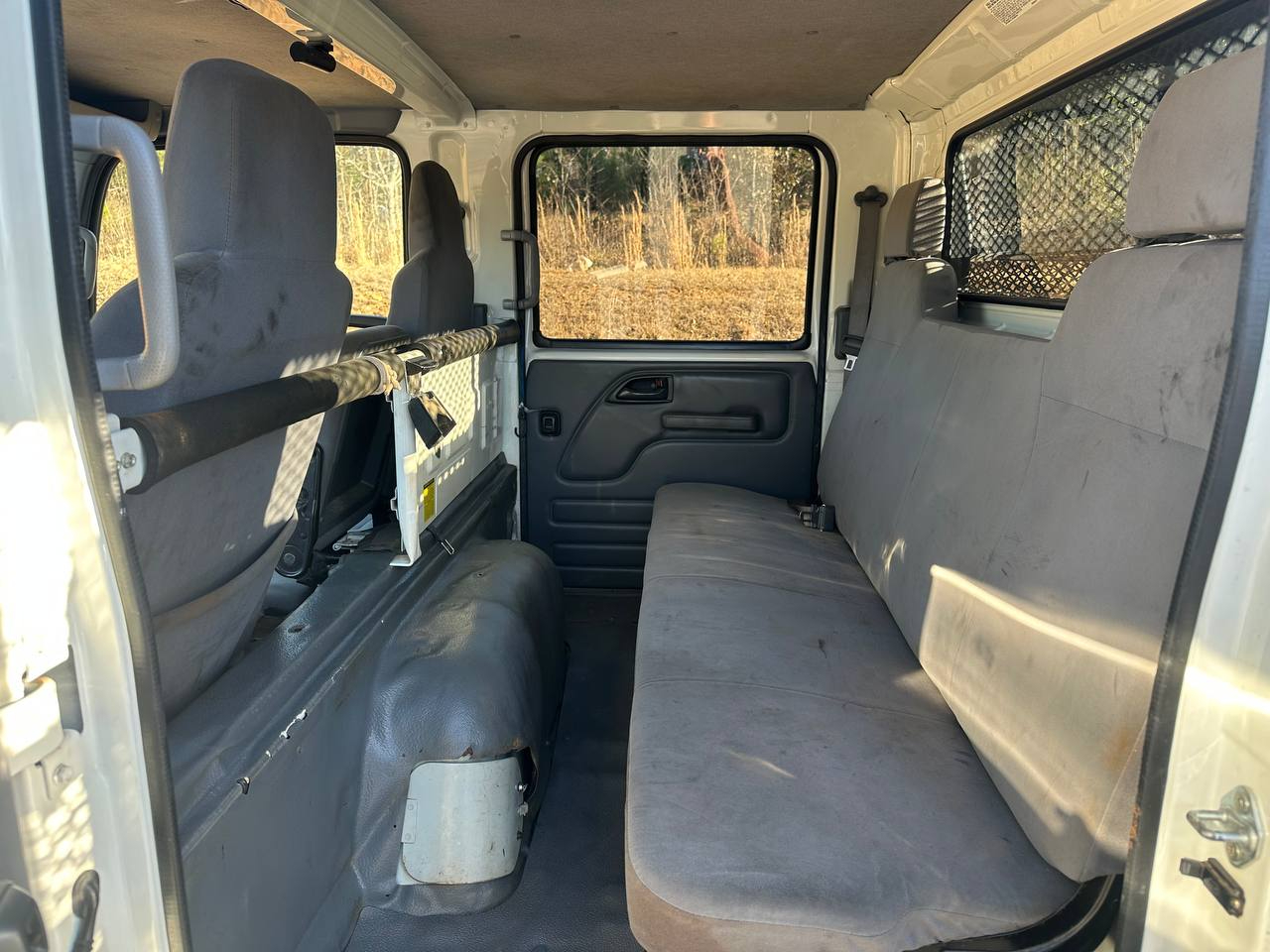

INTERIOR

  • Cup holders
  • Floor mats
  • Steering wheel, urethane
  • Steering wheel, tilt and telescopic
  • Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. The DIC provides fuel economy reporting by average, instant, and trip.)
  • Air conditioning, single-zone manual, integral in-dash mounted
  • Windows, power
  • Windshield washer bottle access on passenger side dash when passenger-side door is open
  • Storage, door pockets
  • Lighting, interior dome
  • Storage, seatback pockets

SAFETY

  • Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
  • Daytime Running Lamps

301802
88,052
RWD
Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Tu
4
White
Gray
Cloth
Automatic
JALEEJ162L7301802
